- Uplink environmental data transmission in 401-403 MHz
UHF band.
- Compatible with INSAT-3A, KALPANA-1, INSAT-3D and upcoming
INSAT-3DR DRTs.
- 100 Hz channel raster.
- Frequency stability better than ±1 ppm.
- Automatic frequency drift correction.
- TDMA Communication Protocol with customizable burst format.
- GPS Time Synchronization guarantees time accuracy
better than 1 us.
- 4800 bps INSAT transmission.
- Output power configurable from 3W to 10W in 0.5W
steps.
- Output power stability better than ±1dB.
| - Ultra low power consumption less than 30 mW @ 12VDC
supply.
- Configuration and software upgrade in the field using serial
RS232 interface.
- Failsafe feature to prevent continuous transmission.
- Manual or automatic failsafe condition exit handling.
- Fully maintenance-free, self-timed operation.
- Compact-sized, IP66/IP67 enclosure.
- Operating temperature range: -40ºC to +55ºC.
- EMI/ESD: in accordance with IEC/EN 61000-4, IEC/EN
61000-6-x, CISPR 11/EN 55011 and IEC/EN 61326.
- Safety: in accordance with IEC/EN 60950 and IEC/EN
61010.

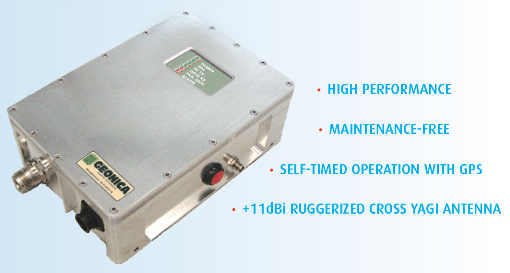

- Designed and manufactured in Spain by GEONICA following
exacting ISO9001 quality standards.
|
